PNL-500-2-3

CONN TERM RECT LUG 4 AWG

Manufacturer: Panduit Corp

Categories: Lugs

Quality Control: Learn More

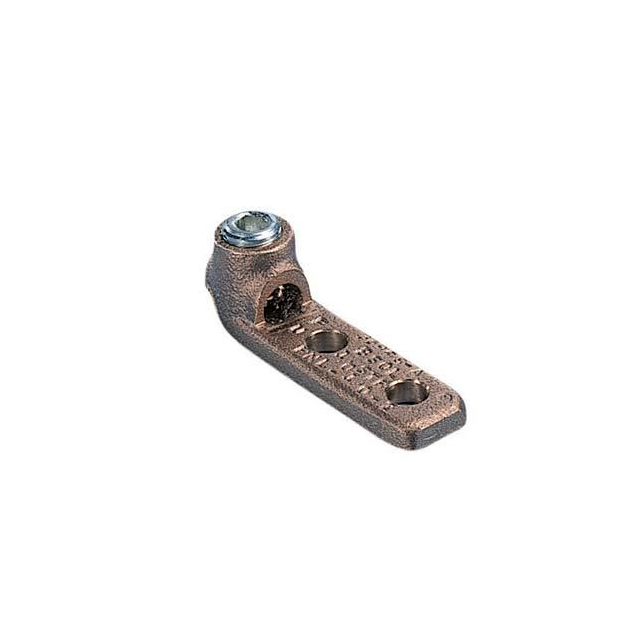

Panduit Corp Pan-Lug™ PNL-500-2-3 is a non-insulated, rectangular lug terminal designed for grounding applications. This component features two stud holes and accommodates wire gauges from 500MCM (kcmil) down to 4 AWG. The terminal's robust construction includes a 0.310" (7.87mm) tab thickness, with an overall length of 3.380" (85.85mm) and an outer width of 1.380" (35.05mm). Designed for free-hanging, in-line mounting, this lug is supplied in bulk packaging. Its reliable screw termination ensures secure connections in demanding industrial environments, including power distribution and heavy equipment manufacturing.

Additional Information

Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
FeaturesWith Screw
PackagingBulk
Color-
Mounting TypeFree Hanging (In-Line)
Wire Gauge500MCM (kcmil)-4 AWG
InsulationNon-Insulated
Terminal TypeLug, Grounding
Stud/Tab Size-
Length - Overall3.380"" (85.85mm)
TerminationScrew
Width - Outer Edges1.380"" (35.05mm)
Tab Thickness0.310"" (7.87mm)
Terminal StyleTwo Stud Holes
