PNL-250-2-Q
CONN TERM RECT LUG 6 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

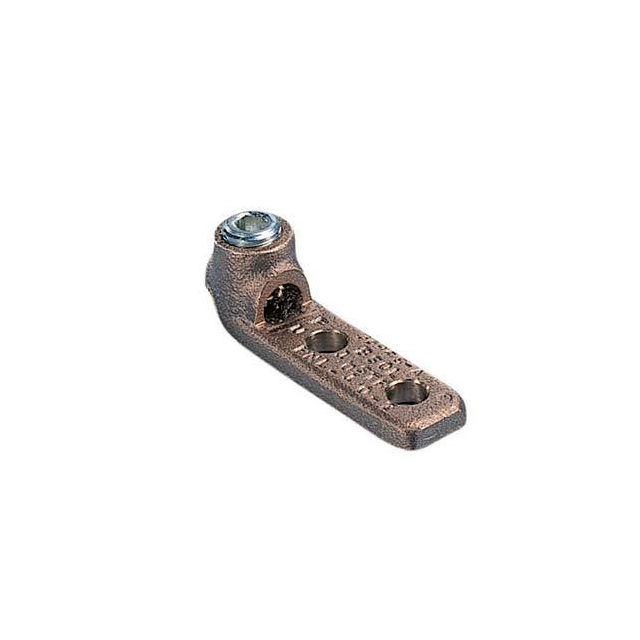

Panduit Corp Pan-Lug™ PNL-250-2-Q is a non-insulated terminal lug designed for grounding applications. This rectangular lug features two stud holes and a screw termination method. Its wire gauge compatibility spans from 250MCM (kcmil) down to 6 AWG. The overall length is 2.880 inches (73.15mm), with an outer width of 0.940 inches (23.88mm) and a tab thickness of 0.220 inches (5.59mm). The PNL-250-2-Q is suitable for free hanging (in-line) mounting. This component is commonly utilized in power distribution, industrial automation, and electrical infrastructure projects. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) - 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | - |
| Length - Overall | 2.880"" (73.15mm) |
| Termination | Screw |
| Width - Outer Edges | 0.940"" (23.88mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
