PNL-1000-3
CONN TERM RECT LUG 500-1000 MCMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

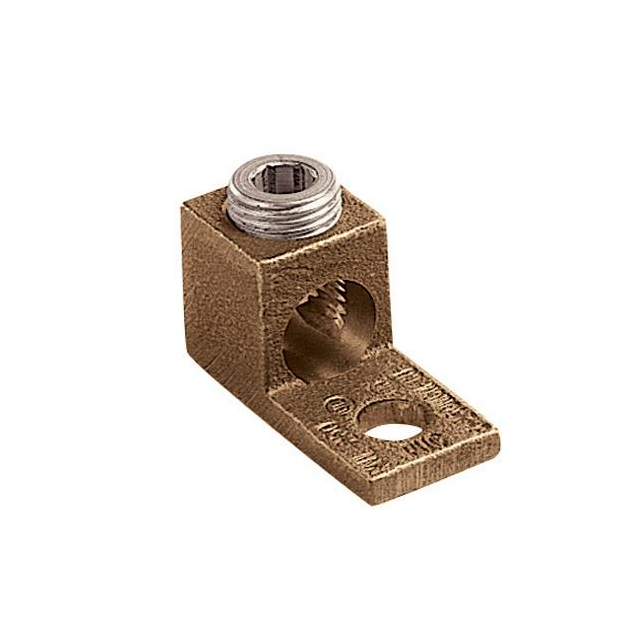

Panduit Corp Pan-Lug™ PNL-1000-3 is a non-insulated, rectangular lug terminal designed for grounding applications. This component supports wire gauges from 500 to 1000 MCM (kcmil) and features a single stud hole for termination with a screw. With an overall length of 3.880 inches (98.55mm) and a tab thickness of 0.375 inches (9.53mm), it offers robust connectivity. The lug's outer edges measure 1.750 inches (44.45mm) in width. This terminal is suitable for free-hanging, in-line mounting. It is commonly utilized in power distribution, industrial automation, and renewable energy systems where reliable grounding is critical. The PNL-1000-3 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500-1000MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | - |
| Length - Overall | 3.880"" (98.55mm) |
| Termination | Screw |
| Width - Outer Edges | 1.750"" (44.45mm) |
| Tab Thickness | 0.375"" (9.53mm) |
| Terminal Style | Single Stud Hole |
