P2NLT-500-3
CONN TERM RECT LUG 4 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

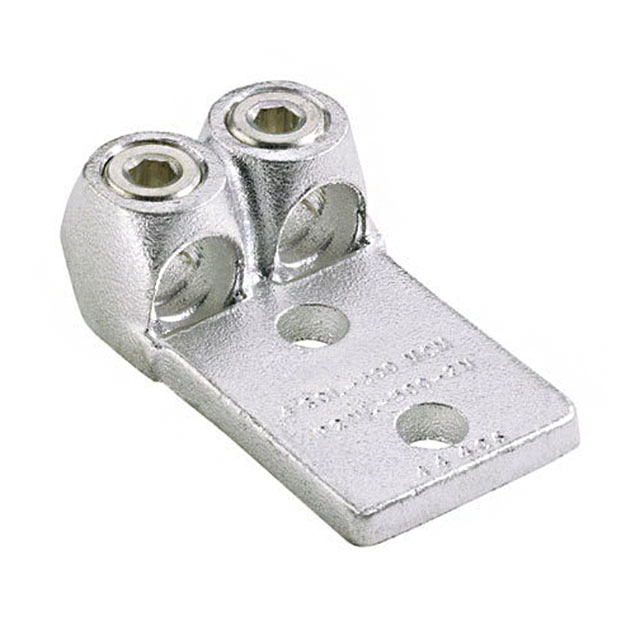

Panduit Corp Pan-Lug™ P2NLT-500-3 is a non-insulated rectangular lug terminal designed for grounding applications. This component facilitates the termination of wire gauges from 500MCM (kcmil) down to 4 AWG. Featuring two screw-secured stud holes, it offers a robust connection method. The overall length is 4.500" (114.30mm) with a tab thickness of 0.380" (9.65mm) and an outer edge width of 2.500" (63.50mm). The mounting type is free hanging (in-line). This terminal is commonly employed in power distribution and industrial automation systems where reliable grounding is critical. The P2NLT-500-3 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | 2 Cable Entries, With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil)-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | - |
| Length - Overall | 4.500"" (114.30mm) |
| Termination | Screw |
| Width - Outer Edges | 2.500"" (63.50mm) |
| Tab Thickness | 0.380"" (9.65mm) |
| Terminal Style | Two Stud Holes |
