ML250T-QY
CONN TERM RECT LUG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

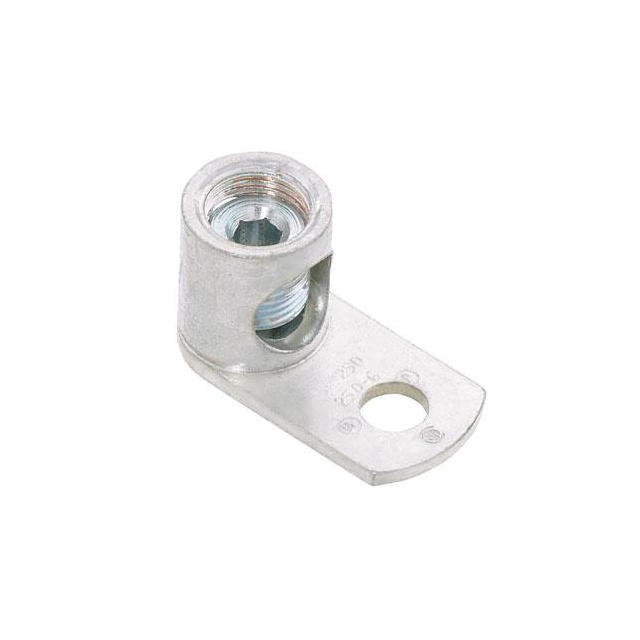

Panduit Corp Pan-Lug™ ML250T-QY is a non-insulated, rectangular lug terminal designed for grounding applications. This single stud hole terminal accommodates wire gauges from 250MCM (kcmil) down to 6 AWG, with a 3/8 Stud size and a tab thickness of 0.120 inches. The overall length is 1.940 inches, and the outer edges measure 0.940 inches in width. Featuring a screw termination and a free hanging (in-line) mounting type, this lug is suitable for high-density power distribution and grounding in industrial automation, power generation, and telecommunications infrastructure. The ML250T-QY is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) - 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.940"" (49.28mm) |
| Termination | Screw |
| Width - Outer Edges | 0.940"" (23.88mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
