LCP750-12-3
COPPER COMPRESSION LUG, 4 HOLE,Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

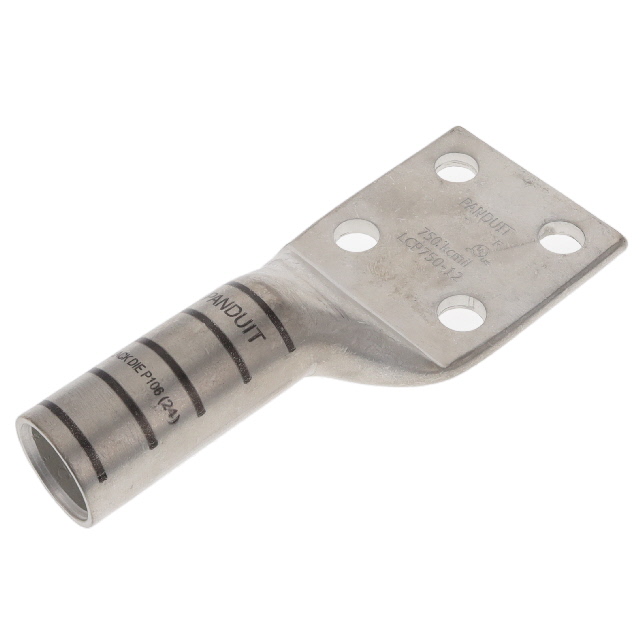

Panduit Corp LCP750-12-3 is a non-insulated, standard copper compression lug designed for robust electrical connections. This four-stud terminal connector accommodates wire gauges up to 750MCM (kcmil) and features a 1/2 stud size for secure mounting. With a terminal thickness of 0.260 inches and an overall length of 7.250 inches, it offers substantial material for reliable crimp termination. The lug's rectangular design and 3.000-inch outer edge width ensure compatibility with standard busbar configurations. This component is frequently utilized in power distribution, industrial automation, and renewable energy systems where high current handling and durability are critical. Packaged in bulk, the LCP750-12-3 is a dependable solution for demanding electrical infrastructure applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 7.250"" (184.15mm) |
| Termination | Crimp |
| Width - Outer Edges | 3.000"" (76.20mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Four Stud Holes |
