LCMDX70-12-X
CONN TERM RECT RING 70MM #M12Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp LCMDX Series ring terminal, part number LCMDX70-12-X, is a non-insulated, tubular ring terminal designed for 70mm² wire gauge. This component features a M12 stud size with a tab thickness of 0.118" (3.00mm) and a 0.965" (24.51mm) outer width. The overall length is 4.134" (105.00mm). Termination is achieved via crimp to the barrel, and the mounting type is free hanging (in-line). It is supplied in bulk packaging. This terminal connector is suitable for applications requiring robust and reliable electrical connections in industries such as power distribution and industrial automation.
Additional Information
Series: LCMDXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 70mm² |
| Insulation | Non-Insulated |
| Terminal Type | Ring, Tubular |
| Stud/Tab Size | M12 Stud |
| Length - Overall | 4.134"" (105.00mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.965"" (24.51mm) |
| Tab Thickness | 0.118"" (3.00mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
Clients Also Buy
LCMDX10-00-Q
CONN TERM RECT RING 10MM

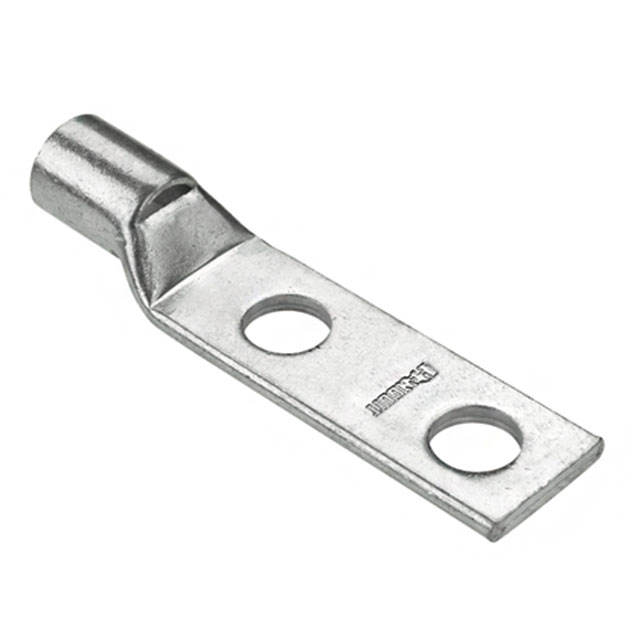

LCMDX150-12-X
