LCMD95-12-X
CONN TERM RECT RING 95MM #M12Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

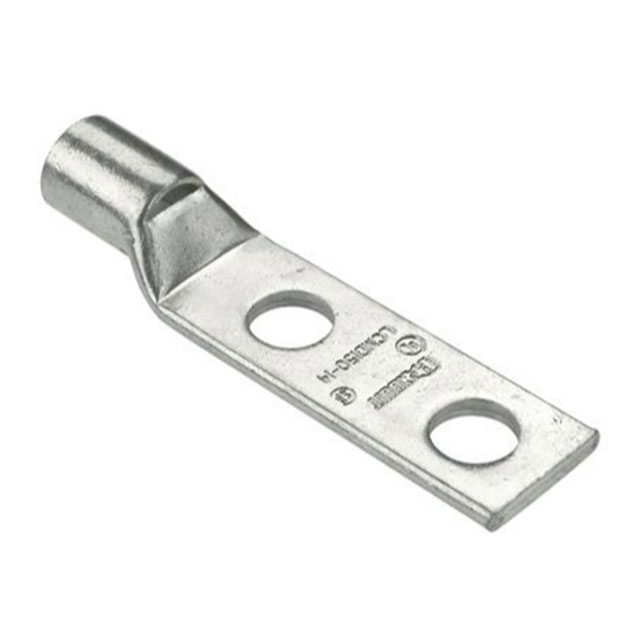

Panduit Corp Pan-Lug™ LCMD95-12-X is a non-insulated, tubular ring terminal designed for robust electrical connections. This component utilizes a crimp barrel termination method and is engineered to accommodate wire gauges of 95mm². Featuring a rectangular, two-stud hole terminal style, it is specifically designed for M12 stud sizes with a tab thickness of 0.118 inches (3.00mm). The overall length of the terminal is 4.134 inches (105.00mm) with an outer edge width of 0.965 inches (24.51mm). This terminal is suitable for in-line, free-hanging mounting applications. The Panduit Corp LCMD95-12-X is commonly utilized in power distribution, industrial automation, and renewable energy systems where reliable termination of large gauge conductors is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 95mm² |
| Insulation | Non-Insulated |
| Terminal Type | Ring, Tubular |
| Stud/Tab Size | M12 Stud |
| Length - Overall | 4.134"" (105.00mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.965"" (24.51mm) |
| Tab Thickness | 0.118"" (3.00mm) |
| Terminal Style | Two Stud Holes |
