LCMD95-00-X
CONN TERM RECT RING 95MMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

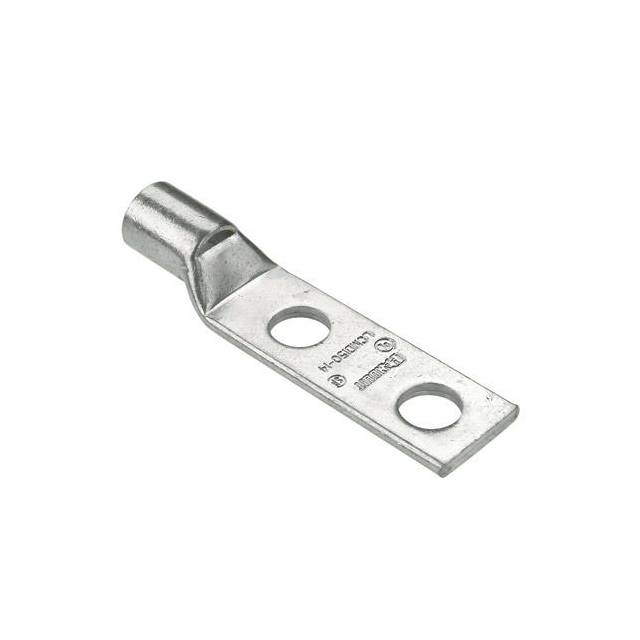

Panduit Corp Pan-Lug™ LCMD95-00-X is a non-insulated, rectangular ring terminal designed for crimp termination of 95mm² conductors. This tubular terminal features a 2.90mm tab thickness and a 24.51mm outer width, with an overall length of 105.00mm. The LCMD95-00-X is suitable for free-hanging, in-line mounting configurations. Its robust construction makes it a reliable choice for demanding applications in the power distribution, industrial automation, and renewable energy sectors. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 95mm² |
| Insulation | Non-Insulated |
| Terminal Type | Ring, Tubular |
| Stud/Tab Size | - |
| Length - Overall | 4.134"" (105.00mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.965"" (24.51mm) |
| Tab Thickness | 0.114"" (2.90mm) |
| Terminal Style | No Stud Hole |
