LCMD300-12-5
CONN TERM RECT RING 300MM #M12Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

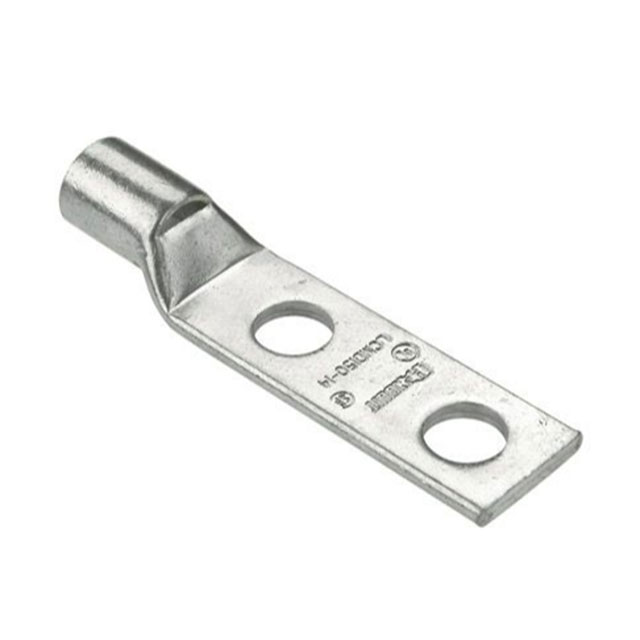

Panduit Corp Pan-Lug™ LCMD300-12-5 is a non-insulated, rectangular ring terminal designed for robust electrical connections. This tubular terminal accommodates 300mm² wire gauge and features an M12 stud size with a 5.40mm tab thickness. The terminal style includes two stud holes, facilitating secure mounting. With an overall length of 139.00mm and an outer width of 42.49mm, it is engineered for free-hanging, in-line termination via crimp barrel. This component is commonly utilized in power distribution, renewable energy, and industrial automation applications where reliable, high-current connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 300mm² |
| Insulation | Non-Insulated |
| Terminal Type | Ring, Tubular |
| Stud/Tab Size | M12 Stud |
| Length - Overall | 5.472"" (139.00mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.673"" (42.49mm) |
| Tab Thickness | 0.213"" (5.40mm) |
| Terminal Style | Two Stud Holes |
