LCMD240-12-5
CONN TERM RECT RING 240MM #M12Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

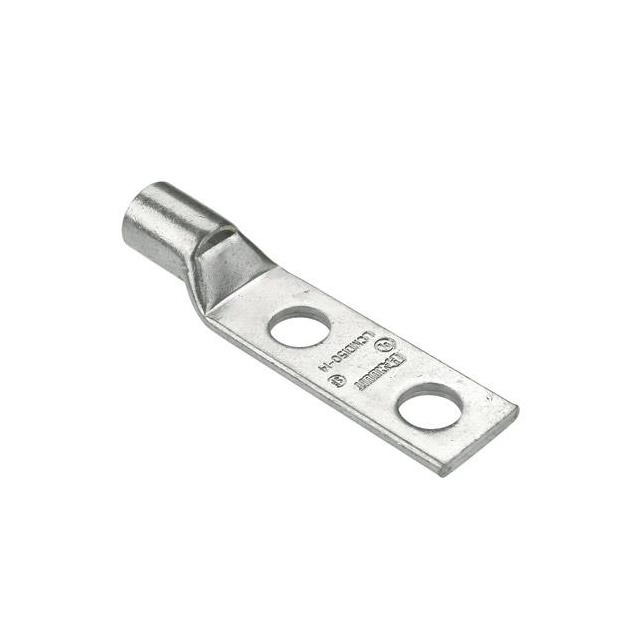

Terminal Connector Rectangular Ring, Tubular 240mm² M12 Stud
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 240mm² |
| Insulation | Non-Insulated |
| Terminal Type | Ring, Tubular |
| Stud/Tab Size | M12 Stud |
| Length - Overall | 5.157"" (131.00mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.476"" (37.49mm) |
| Tab Thickness | 0.209"" (5.31mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
