LCMC95-14-X
CONN TERM RECT RING 95MM #M14Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp LCMC Series LCMC95-14-X is a non-insulated, tubular ring terminal designed for high-current applications requiring robust termination. This component features a 95mm² wire gauge capacity and accommodates an M14 stud size with a 0.118" (3.00mm) tab thickness. The overall length is 4.862" (123.49mm), with an outer edge width of 0.965" (24.51mm). Termination is achieved via crimp to the barrel, offering a secure connection. Its free-hanging (in-line) mounting type, coupled with its two stud hole terminal style, makes it suitable for demanding environments. This Panduit Corp lug is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors where reliable, high-capacity connections are critical. Supplied in bulk packaging.
Additional Information
Series: LCMCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 95mm² |
| Insulation | Non-Insulated |
| Terminal Type | Ring, Tubular |
| Stud/Tab Size | M14 Stud |
| Length - Overall | 4.862"" (123.49mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.965"" (24.51mm) |
| Tab Thickness | 0.118"" (3.00mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
Clients Also Buy

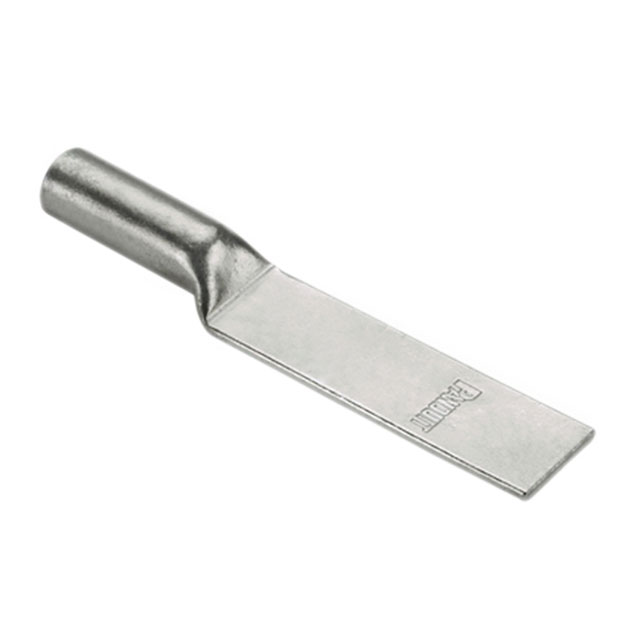

LCMC120-00-X
