LCG8-C
14 AWG (SOL) - 8 AWG (STR) W/ STManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp LCG Series LCG8-C is a non-insulated, single stud hole rectangular lug designed for grounding applications. This terminal connector accommodates wire gauges from 14 AWG solid to 8 AWG stranded, with a stud size of 10. Featuring a tab thickness of 0.080 inches and an overall length of 0.810 inches, its free hanging (in-line) mounting type and screw termination facilitate secure connections. The outer edges measure 0.380 inches in width. This component is utilized in electrical infrastructure, power distribution, and industrial automation systems.
Additional Information
Series: LCGRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8-14 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.810"" (20.57mm) |
| Termination | Screw |
| Width - Outer Edges | 0.380"" (9.65mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
Clients Also Buy

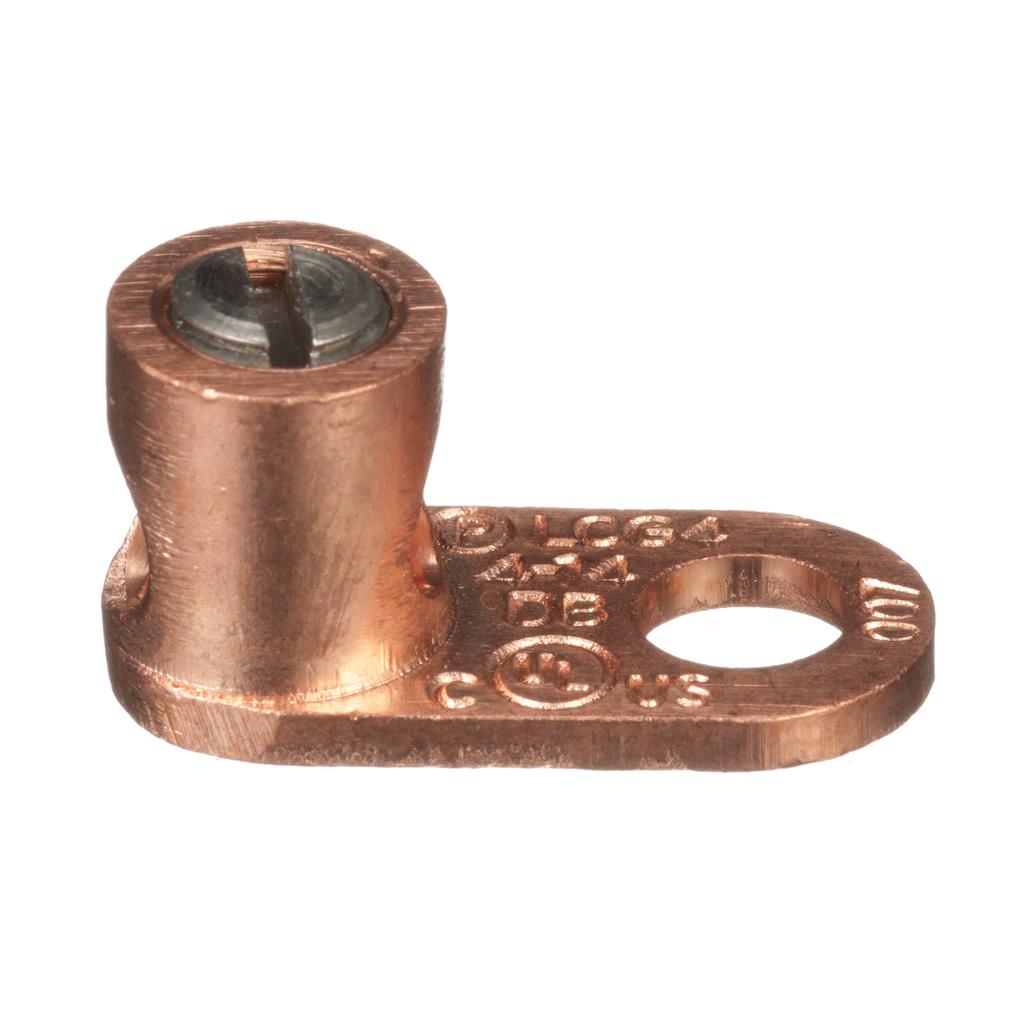

LCG4-C
