LCDXN750-38DF-3
CONN TERM RECT TONG 750 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

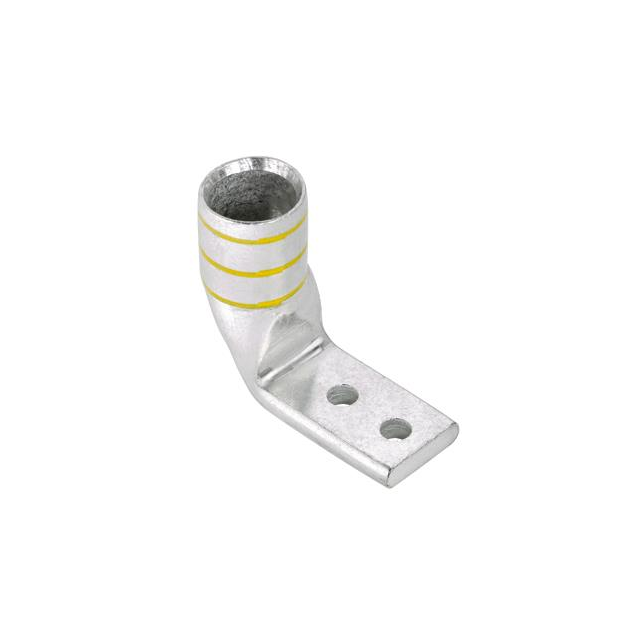

Panduit Corp Pan-Lug™ LCDXN750-38DF-3 is a non-insulated, rectangular tongue terminal connector designed for 750MCM (kcmil) wire. This component features a 3/8 stud size and a tab thickness of 0.340 inches (8.64mm). The terminal style includes two stud holes, and the termination method is Crimp, utilizing a barrel design. With an overall width of 1.500 inches (38.10mm), the LCDXN750-38DF-3 is suitable for free hanging (in-line) and right-angle mounting configurations. It is commonly employed in power distribution and industrial control applications, supporting robust electrical connections in demanding environments. This Panduit Corp terminal is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.500"" (38.10mm) |
| Tab Thickness | 0.340"" (8.64mm) |
| Terminal Style | Two Stud Holes |
