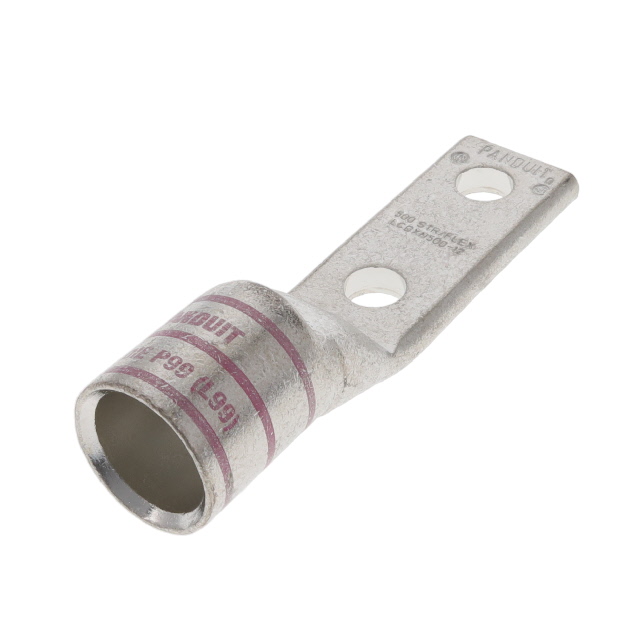

LCDXN500-12-6
COPPER COMPRESSION LUG, 2 HOLE,Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Terminal Connector Rectangular Rectangular Tongue 500MCM (kcmil) 1/2 Stud
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 5.310"" (134.87mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.300"" (33.02mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | Two Stud Holes |
