LCDX750-12G-3
CONN TERM RECT TONG 750 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

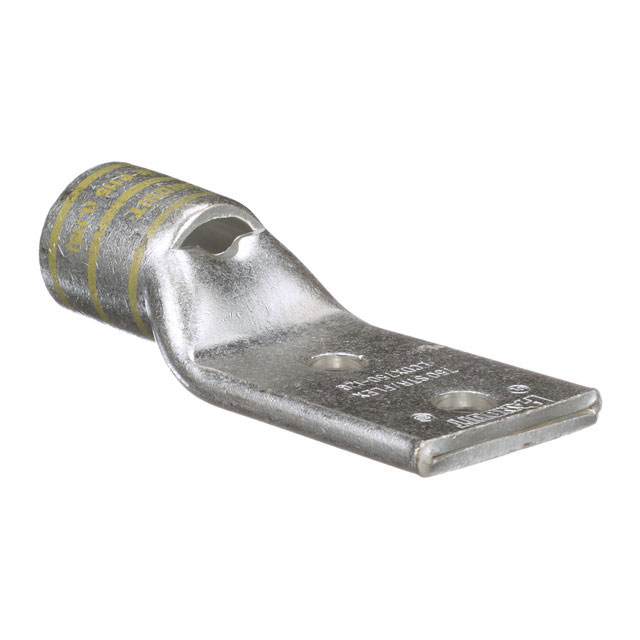

Panduit Corp Pan-Lug™ LCDX750-12G-3 is a non-insulated, rectangular tongue terminal connector designed for high-power applications. This component features two stud holes, accommodating a 1/2 stud size, and is rated for 750MCM (kcmil) wire gauge. The terminal style is a rectangular tongue with a barrel termination suitable for crimping. Key dimensions include an overall length of 5.310 inches (134.87mm), a tab thickness of 0.320 inches (8.13mm), and an outer edge width of 2.170 inches (55.12mm). The mounting type is free hanging (in-line). This terminal connector is commonly utilized in power distribution, heavy equipment manufacturing, and industrial automation sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 5.310"" (134.87mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 2.170"" (55.12mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | Two Stud Holes |
