LCDX750-12E-3
CONN TERM RECT TONG 750 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

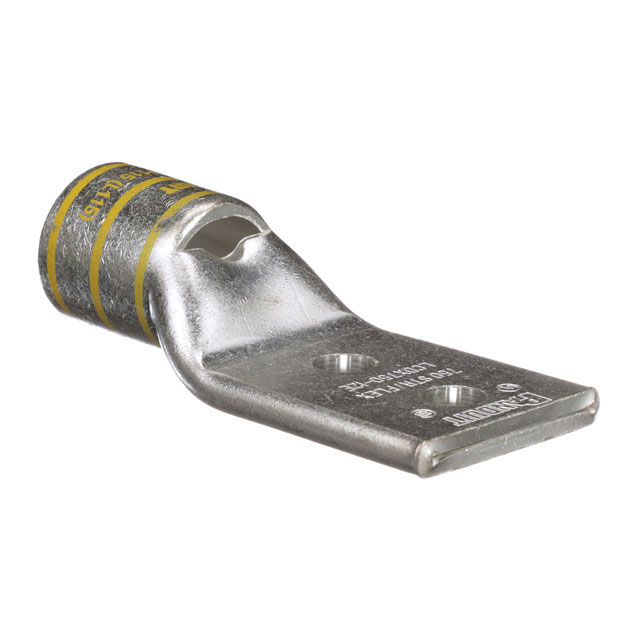

Panduit Corp Pan-Lug™ LCDX750-12E-3 is a non-insulated rectangular tongue terminal connector designed for high-power applications. This component accepts 750MCM (kcmil) wire gauge and features a 1/2 stud size for secure mounting. The robust construction includes a barrel termination for crimping, ensuring reliable electrical connections. With an overall length of 5.050 inches (128.27mm) and a width of 2.170 inches (55.12mm), it offers substantial contact area. The terminal style incorporates two stud holes for enhanced connection stability. Commonly utilized in power distribution, industrial automation, and energy infrastructure, this bulk-packaged component provides durable and efficient termination solutions for demanding environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 5.050"" (128.27mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 2.170"" (55.12mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | Two Stud Holes |
