LCDX6-14BH-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

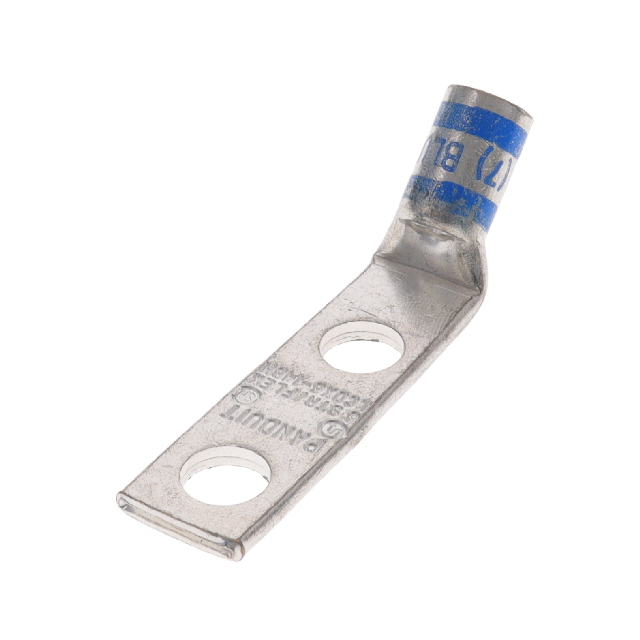

Panduit Corp Pan-Lug™ Rectangular Tongue Terminal, part number LCDX6-14BH-L, is a non-insulated electrical connector designed for 6 AWG conductors. This terminal features a 1/4 stud size with a tab thickness of 0.080 inches (2.03mm). The rectangular tongue design facilitates a secure connection, and the terminal type supports crimp barrel termination. With a 45° angle and free-hanging (in-line) mounting, it offers flexibility in application. The outer edges measure 0.480 inches (12.19mm) in width. This component is commonly utilized in power distribution and electrical infrastructure applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
