LCDX6-10G-L
CONN TERM RECT TONG 6 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

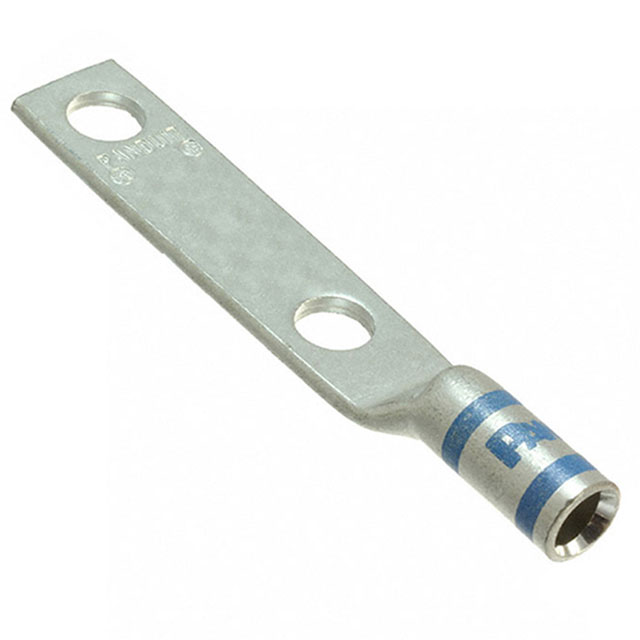

Panduit Corp Pan-Lug™ LCDX6-10G-L is a non-insulated rectangular tongue terminal connector designed for 6 AWG wire. This component features a two-stud configuration with a #10 stud size and a tab thickness of 0.080 inches. The terminal style is crimp, barrel, and its overall length is 2.690 inches, with an outer width of 0.460 inches. The LCDX6-10G-L is suitable for applications requiring robust electrical connections, commonly found in power distribution, industrial automation, and electrical infrastructure projects. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 2.690"" (68.33mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
