LCDX6-10B-L
CONN TERM RECT TONG 6 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

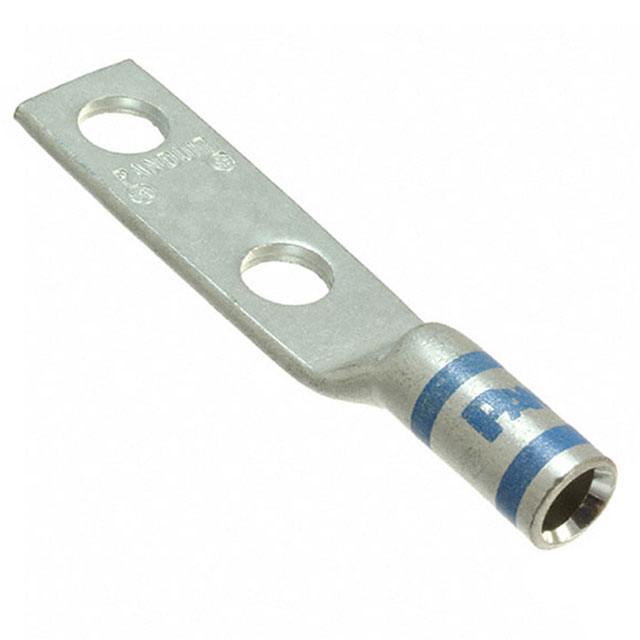

Panduit Corp Pan-Lug™ LCDX6-10B-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features two stud holes, accommodating a #10 stud size, with a tab thickness of 0.080 inches. The overall length is 1.940 inches, and the outer width measures 0.460 inches. Termination is achieved via crimp to a barrel. The Panduit Corp Pan-Lug™ LCDX6-10B-L is suitable for applications within the power distribution and industrial automation sectors. This bulk-packaged item provides a robust connection solution for demanding electrical environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.940"" (49.28mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
