LCDX500-38DF-6
CONN TERM RECT TONG 500 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

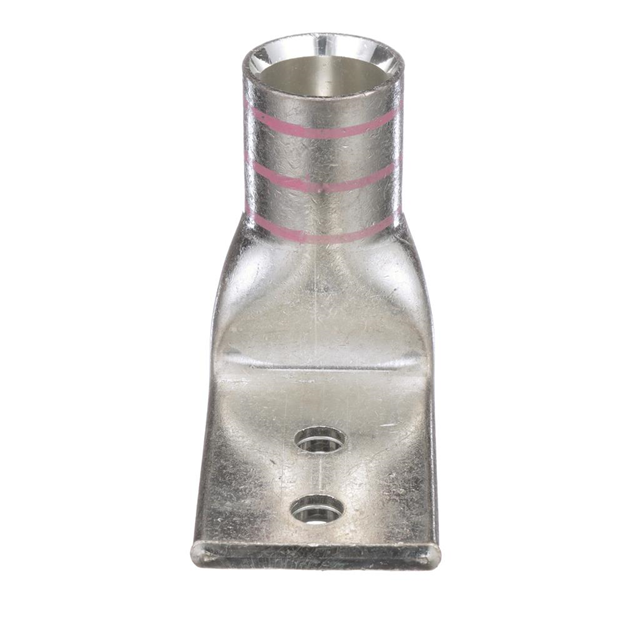

Panduit Corp Pan-Lug™ LCDX500-38DF-6 is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 500 kcmil wire gauge capacity and accommodates a 3/8 stud size, with a tab thickness of 0.260 inches. The terminal style includes two stud holes, and termination is achieved via crimp to the barrel. With an overall width of 1.890 inches, the LCDX500-38DF-6 is suitable for free hanging (in-line) and right-angle mounting configurations. This Panduit Corp terminal connector is commonly specified in power distribution, industrial automation, and heavy equipment manufacturing applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Two Stud Holes |
