LCDX500-12E-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

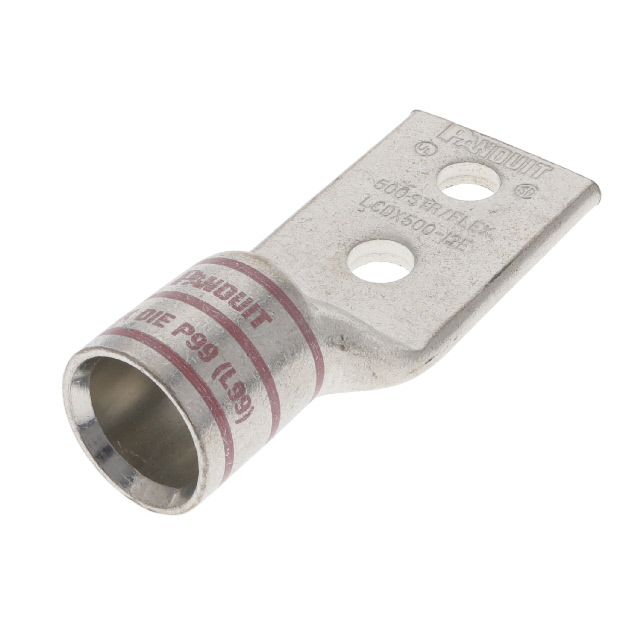

Panduit Corp Pan-Lug™ LCDX500-12E-6 is a non-insulated rectangular tongue terminal connector designed for high-capacity power applications. This terminal accommodates 500 kcmil wire gauge and features a 1/2 stud size for secure mounting. The crimp termination with a barrel ensures a robust connection. Its overall length is 4.750 inches (120.65mm), and it has a width of 1.890 inches (48.01mm) across its outer edges. The tab thickness is 0.260 inches (6.60mm). This component is suitable for in-line mounting in demanding industrial environments, including power distribution, heavy machinery, and renewable energy systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.750"" (120.65mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Two Stud Holes |
