LCDX4-56D-L
CONN TERM RECT TONG 4 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

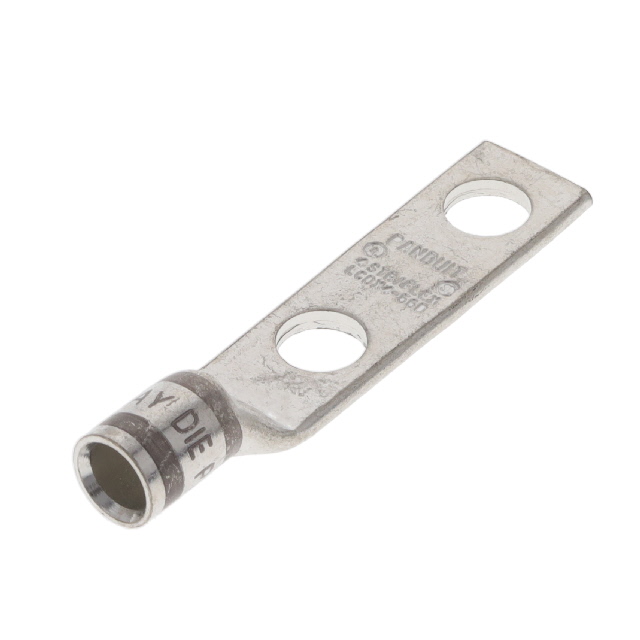

Panduit Corp Pan-Lug™ LCDX4-56D-L is a non-insulated rectangular tongue terminal designed for 4 AWG wire. This terminal features a 5/16 stud size, a tab thickness of 0.090 inches (2.29mm), and an overall length of 2.470 inches (62.74mm). The terminal style includes two stud holes, and termination is achieved via crimp to a barrel. Its outer edge width is 0.550 inches (13.97mm). This component is suitable for free hanging (in-line) mounting applications. The Panduit Corp Pan-Lug™ LCDX4-56D-L is commonly utilized in power distribution and industrial automation sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 2.470"" (62.74mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
