LCDX4/0-38DH-X
CONN TERM RECT TONG 4/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

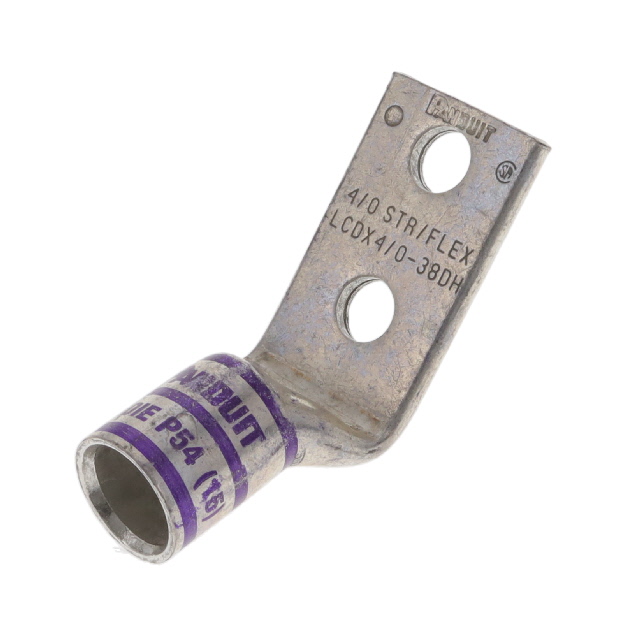

The Panduit Corp Pan-Lug™ LCDX4-0-38DH-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 4/0 AWG wire and features a 3/8 stud size with a tab thickness of 0.160 inches (4.06mm). The terminal style includes two stud holes, facilitating secure mounting. Termination is achieved via crimp to the barrel. With an outer width of 1.190 inches (30.23mm), this terminal is suitable for free-hanging (in-line) or 45° angle mounting configurations. Applications for this Panduit Corp terminal include power distribution, industrial automation, and renewable energy systems. The component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Two Stud Holes |
