LCDX4/0-14AF-X
CONN TERM RECT TONG 4/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

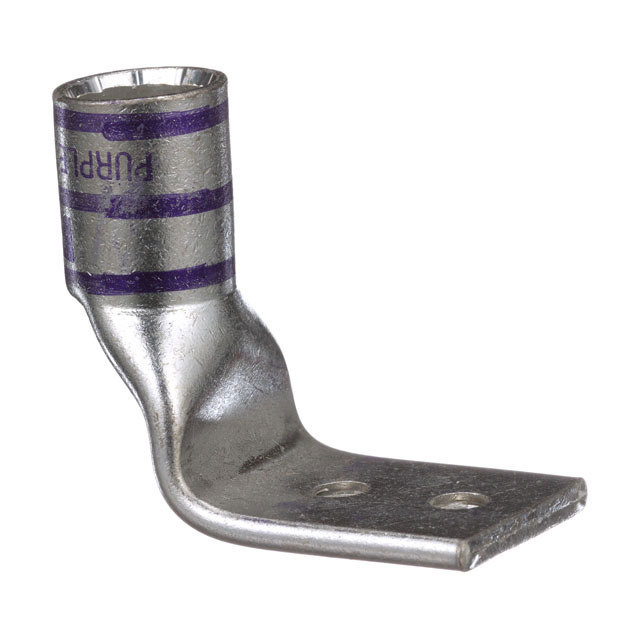

Panduit Corp Pan-Lug™ LCDX4-0-14AF-X is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component features a 4/0 AWG wire gauge capability and a 1/4 stud size, accommodating a 0.160" (4.06mm) tab thickness. The terminal style includes two stud holes for secure mounting. Termination is achieved via crimping onto the barrel. With an overall width of 1.190" (30.23mm), the LCDX4-0-14AF-X offers a robust connection suitable for industrial power distribution, heavy machinery, and energy infrastructure. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Two Stud Holes |
