LCDX4/0-12EF-X
CONN TERM RECT TONG 4/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

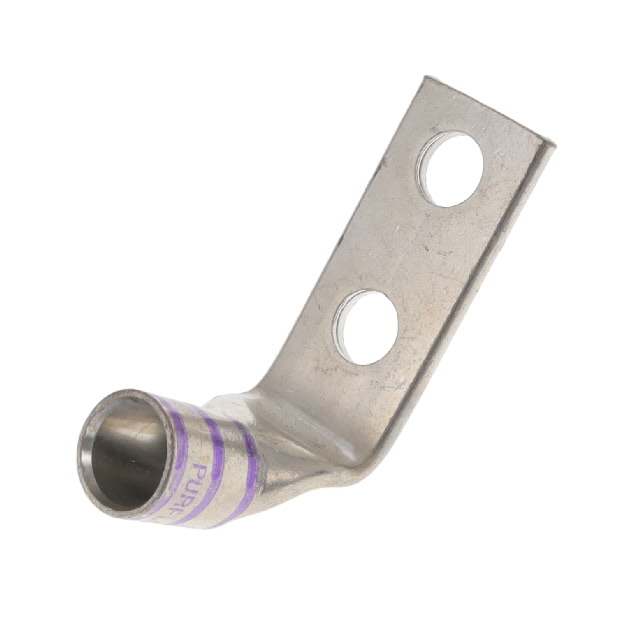

Panduit Corp Pan-Lug™ rectangular tongue terminal connector, part number LCDX4-0-12EF-X, is designed for robust electrical connections. This non-insulated component features a 4/0 AWG wire gauge capacity and a 1/2 stud size, accommodating a 0.160" (4.06mm) tab thickness. The terminal style includes two stud holes for secure mounting, with a width of 1.190" (30.23mm). Termination is achieved via crimp to a barrel, ensuring reliable conductivity. The LCDX4-0-12EF-X supports both free hanging (in-line) and right-angle mounting configurations, making it suitable for applications in power distribution, industrial automation, and heavy equipment manufacturing where dependable termination is critical. Supplied in bulk packaging, this component offers efficient integration into large-scale assembly processes.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Two Stud Holes |
