LCDX4/0-12E-X
CONN TERM RECT TONG 4/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

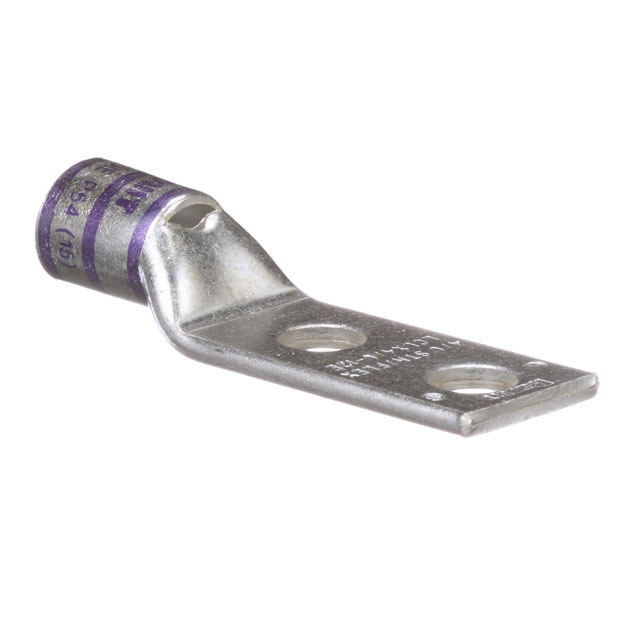

Panduit Corp Pan-Lug™ LCDX4-0-12E-X is a non-insulated, rectangular tongue terminal connector designed for heavy-duty electrical applications. This component features a dual stud configuration, accommodating a 1/2 stud size with a tab thickness of 0.160 inches. It is engineered for 4/0 AWG wire and utilizes a crimp barrel termination. The overall length is 3.880 inches, with an outer width of 1.190 inches. The free-hanging, in-line mounting type facilitates flexible installation. This terminal is commonly utilized in power distribution, industrial automation, and renewable energy systems where robust and reliable electrical connections are paramount. Packaged in bulk, this component offers efficient deployment in high-volume manufacturing environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 3.880"" (98.55mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Two Stud Holes |
