LCDX4/0-12D-X
CONN TERM RECT TONG 4/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

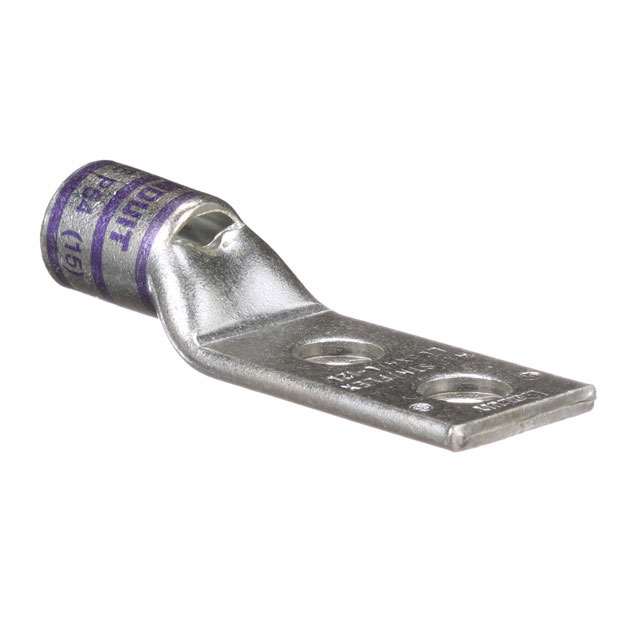

Panduit Corp Pan-Lug™ LCDX4-0-12D-X is a non-insulated, rectangular tongue terminal designed for 4/0 AWG wire. This bulk-packaged component features a 1/2 stud size and a 0.160" tab thickness. The terminal style includes two stud holes, facilitating secure connections. Its overall length is 3.600" (91.44mm) with an outer edge width of 1.190" (30.23mm). The termination method is crimp, utilizing a barrel design. This component is commonly employed in power distribution, electrical infrastructure, and industrial automation applications. The purple color aids in wire identification.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 3.600"" (91.44mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Two Stud Holes |
