LCDX350-38DH-6
CONN TERM RECT TONG 350 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

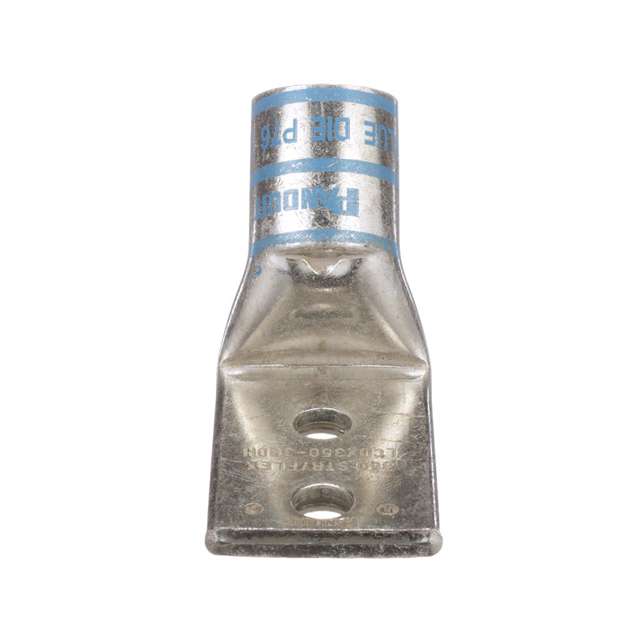

Panduit Corp Pan-Lug™ LCDX350-38DH-6 is a non-insulated, rectangular tongue terminal connector designed for high-power applications. This bulk-packaged component features a 350 kcmil wire gauge capacity and a 3/8 stud size, with a tab thickness of 0.220” (5.59mm) and an outer width of 1.540” (39.12mm). The terminal style accommodates two stud holes, facilitating secure connections. Its termination is achieved via a Crimp, Barrel method, ensuring robust electrical conductivity. The mounting type offers flexibility with Free Hanging (In-Line) and a 45° Angle option. This terminal is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
