LCDX350-12EF-6
CONN TERM RECT TONG 350 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

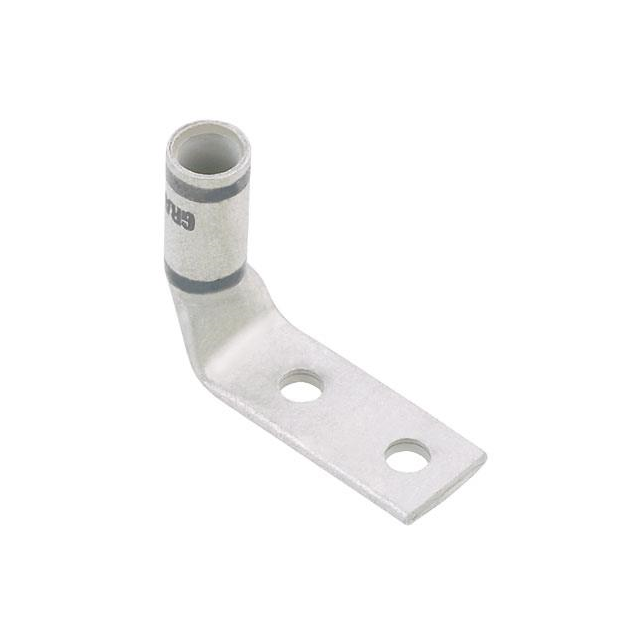

Panduit Corp Pan-Lug™ LCDX350-12EF-6 is a non-insulated, rectangular tongue terminal connector designed for 350 MCM (kcmil) wire. This component features a 1/2 stud size and a tab thickness of 0.220" (5.59mm). The terminal style includes two stud holes, and the termination method is crimp barrel. With an outer width of 1.540" (39.12mm), this connector is suitable for free hanging (in-line) and right-angle mounting types. It is commonly utilized in power distribution and heavy-duty electrical applications. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
