LCDX250-12F-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

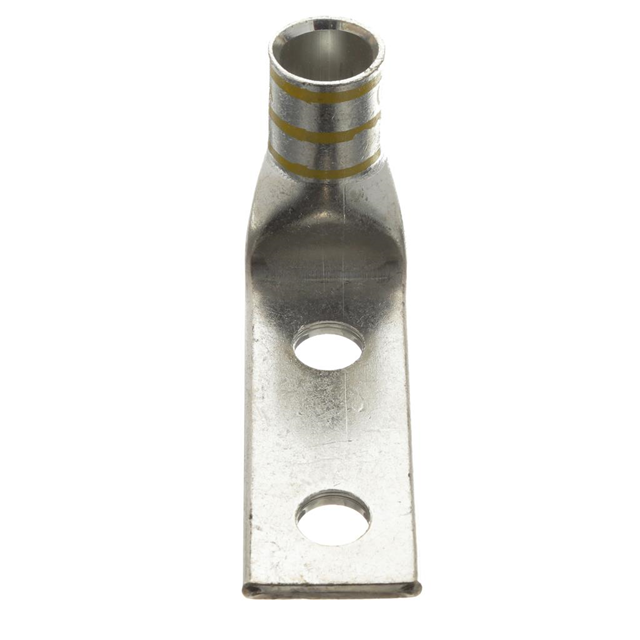

Panduit Corp Pan-Lug™ LCDX250-12F-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 250MCM (kcmil) wire gauge and features a 1/2 stud size, with a tab thickness of 0.170" (4.32mm) and an outer width of 1.280" (32.51mm). Engineered for crimp termination with a barrel style, it offers a two-stud hole terminal configuration for secure mounting. The LCDX250-12F-X is suitable for free hanging (in-line) or right-angle mounting applications. This terminal connector finds utility across various industrial sectors, including power distribution, industrial automation, and renewable energy systems where reliable high-current connections are paramount. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
