LCDX2-56DF-E
CONN TERM RECT TONG 2 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

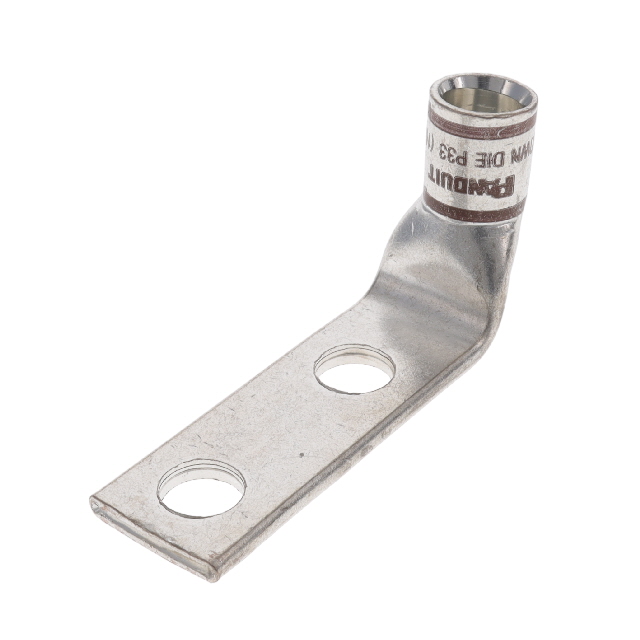

Panduit Corp Pan-Lug™ LCDX2-56DF-E is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 2 AWG wire gauge with a barrel termination suitable for crimping. It features a 5/16 stud size with a tab thickness of 0.110 inches (2.79mm) and an overall width of 0.700 inches (17.78mm). The mounting type offers flexibility with free hanging (in-line) and right-angle options. The terminal style includes two stud holes for secure mounting. This connector is utilized in power distribution and industrial automation applications where reliable terminations are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
