LCDX2-38DH-E
CONN TERM RECT TONG 2 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

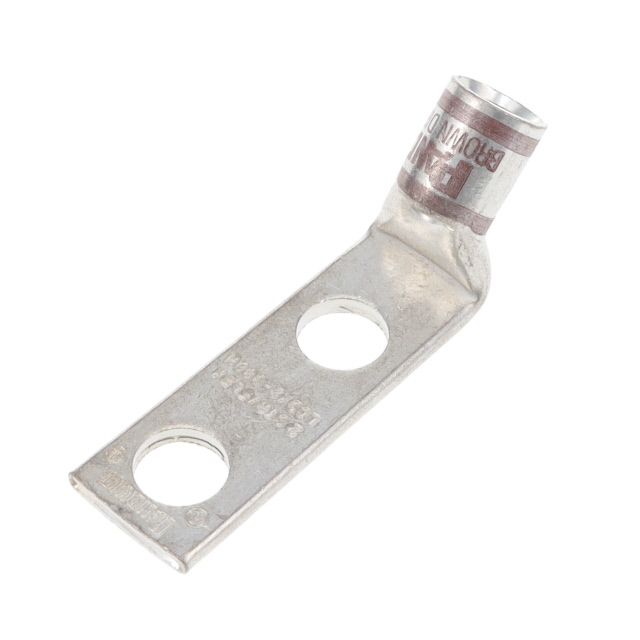

Panduit Corp Pan-Lug™ LCDX2-38DH-E is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accommodates 2 AWG wire gauge and features a 3/8 stud size for secure mounting. The terminal style includes two stud holes, with a tab thickness of 0.110 inches (2.79mm) and an outer width of 0.700 inches (17.78mm). Termination is achieved via crimp to a barrel. The mounting type offers flexibility with options for free hanging (in-line) or a 45° angle. This terminal is commonly utilized in power distribution, industrial automation, and renewable energy sectors where reliable, high-current connections are paramount. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
