LCDX2-14DF-E
CONN TERM RECT TONG 2 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

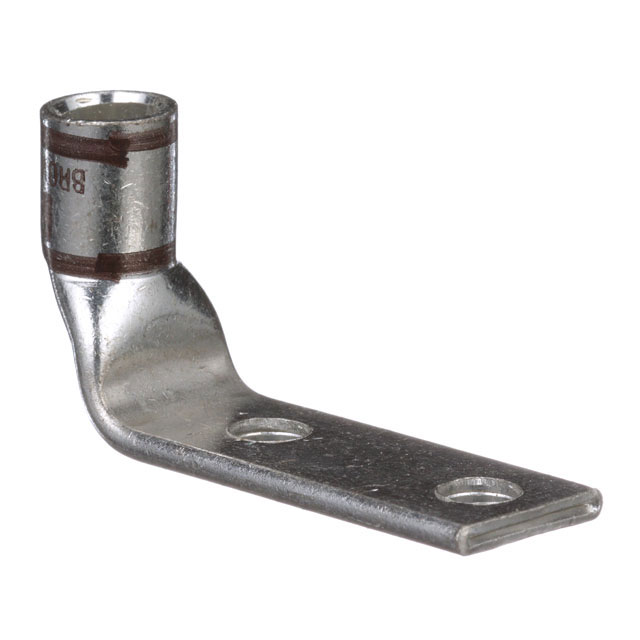

The Panduit Corp Pan-Lug™ LCDX2-14DF-E is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 2 AWG wire via a crimp barrel termination. It features a 1/4 stud size with a tab thickness of 0.110 inches (2.79mm). The terminal style includes two stud holes, facilitating secure mounting. The overall width is 0.700 inches (17.78mm). The LCDX2-14DF-E is suitable for applications requiring reliable termination in demanding electrical environments, often found in power distribution, industrial automation, and heavy equipment manufacturing. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
