LCDX2-12F-E
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

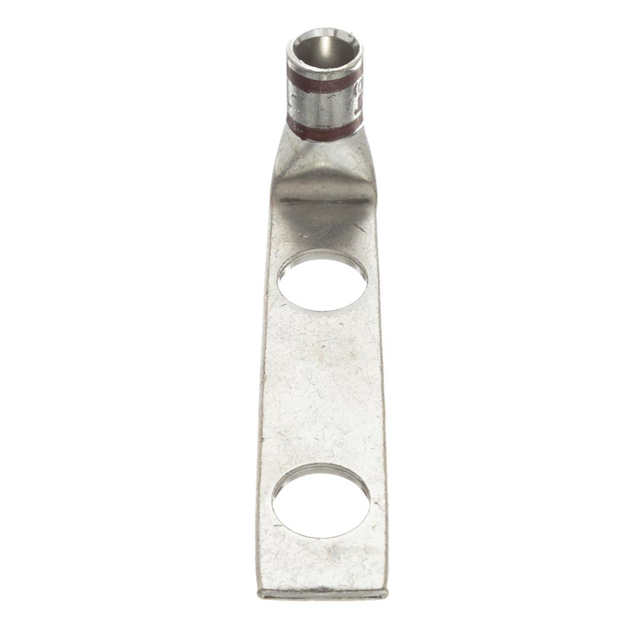

Panduit Corp Pan-Lug™ LCDX2-12F-E is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component is engineered for 2 AWG wire gauge and features a 1/2 stud size with a tab thickness of 0.090 inches (2.29mm). The terminal style supports two stud holes, facilitating secure mounting. Manufactured for crimp termination into a barrel, the LCDX2-12F-E offers a width of 0.750 inches (19.05mm). It is suitable for mounting in free hanging (in-line) or right-angle configurations. This component is commonly utilized in power distribution and industrial control systems. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
