LCDX2/0-56D-X
CONN TERM RECT TONG 2/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

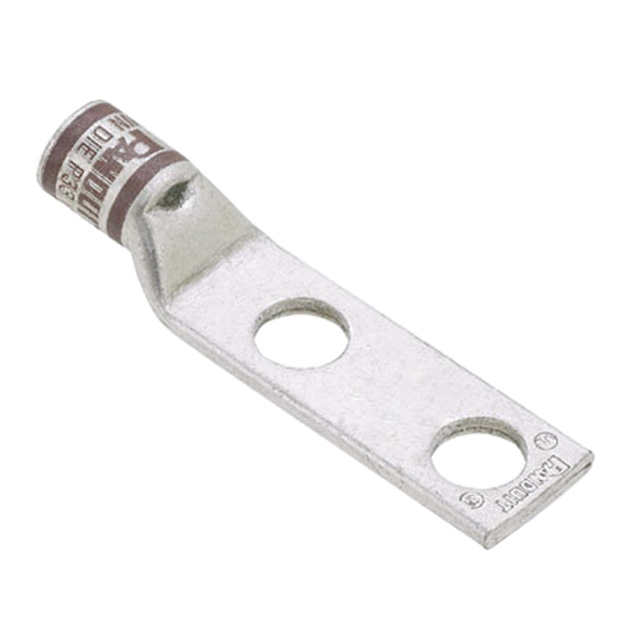

Panduit Corp Pan-Lug™ LCDX2-0-56D-X is a non-insulated, rectangular tongue terminal designed for robust wire termination. This component accommodates 2/0 AWG wire gauge and features a 5/16 stud size for secure connection. Its construction includes a Crimp, Barrel termination method and offers two stud holes for versatile mounting configurations. The overall length is 2.960 inches (75.18mm) with a tab thickness of 0.130 inches (3.30mm) and an outer edge width of 0.960 inches (24.38mm). Supplied in bulk packaging, this terminal is suitable for applications in industrial power distribution and heavy-duty electrical systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 2.960"" (75.18mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
