LCDX2/0-14AH-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

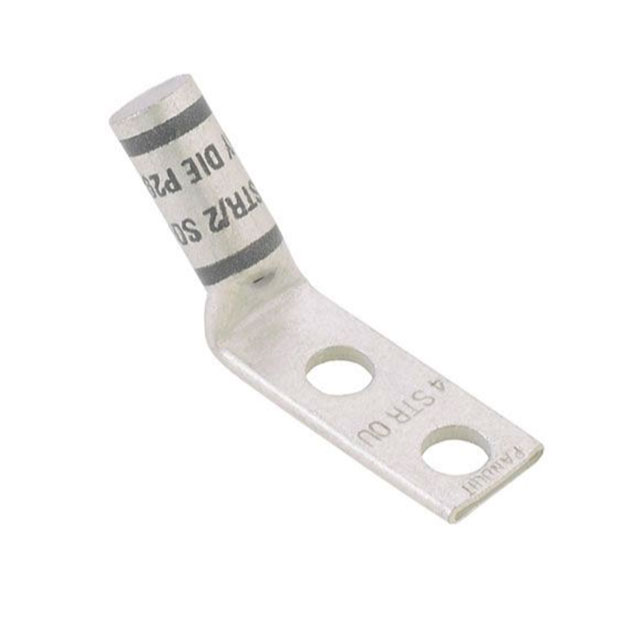

Panduit Corp Pan-Lug™ LCDX2-0-14AH-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component supports 2/0 AWG wire gauge and features a 1/4 Stud size with a tab thickness of 0.130 inches. The terminal style includes two stud holes, facilitating secure mounting. Termination is achieved via crimp to the barrel. With an outer width of 0.960 inches, the Panduit Corp Pan-Lug™ LCDX2-0-14AH-X is suitable for applications requiring reliable connection points. It is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing industries where durable and high-capacity electrical terminations are essential. The mounting type is free hanging (in-line) with a 45° angle capability. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
