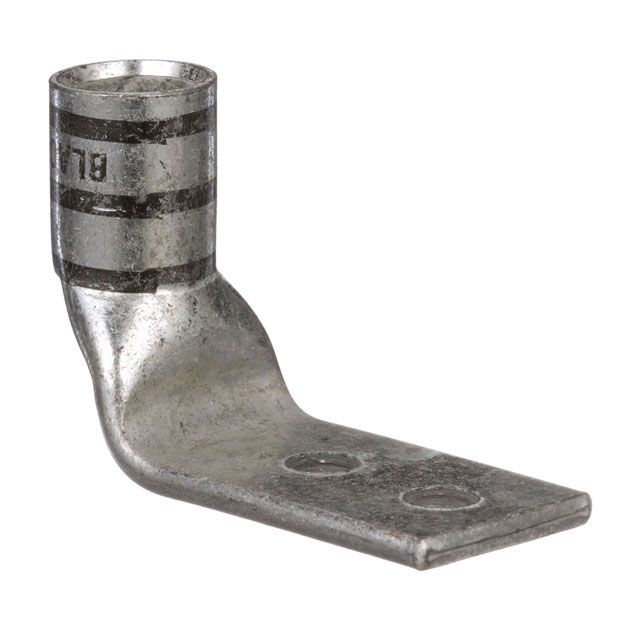

LCDX2/0-14AF-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCDX2-0-14AF-X is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accommodates 2/0 AWG wire gauge and features a 1/4" stud size with a tab thickness of 0.130". The terminal style includes two stud holes, and termination is achieved via crimp to a barrel. Its overall width is 0.960". This product is ideal for industrial automation, power distribution, and telecommunications applications where reliable, high-current connections are critical. The mounting type is free hanging (in-line) with a right-angle orientation.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
