LCDX2/0-12D-X
CONN TERM RECT TONG 2/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

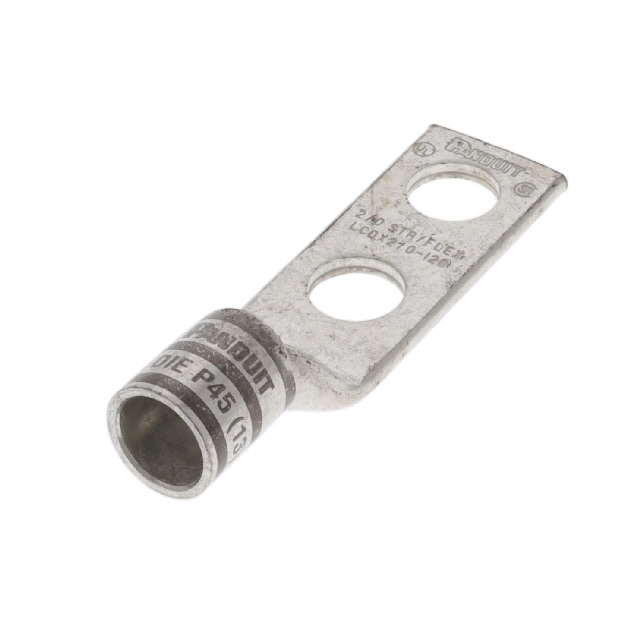

Panduit Corp Pan-Lug™ LCDX2-0-12D-X is a non-insulated rectangular tongue terminal connector designed for 2/0 AWG wire. This component features a 1/2 inch stud size, a tab thickness of 0.130 inches, and an overall length of 3.270 inches. The terminal style incorporates two stud holes, and the termination method is crimp, with a barrel for secure wire connection. The outer edges measure 0.960 inches in width. This component is suitable for various industrial applications, including power distribution and electrical infrastructure. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 3.270"" (83.06mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
