LCDX1-14B-X
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

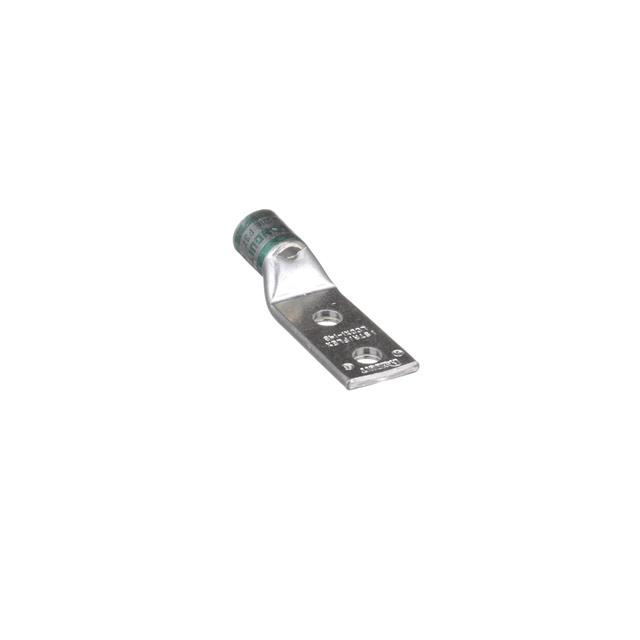

Panduit Corp Pan-Lug™ LCDX1-14B-X is a non-insulated rectangular tongue terminal connector designed for 1 AWG wire. This component features two stud holes with a 1/4 stud size, a tab thickness of 0.120 inches, and an overall length of 2.420 inches. The terminal offers a 0.760-inch outer edge width and utilizes a crimp barrel termination. Its free-hanging, in-line mounting type facilitates straightforward installation. This Panduit Corp terminal is commonly employed in power distribution and electrical infrastructure applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.420"" (61.47mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
