LCDX1-14A-X
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

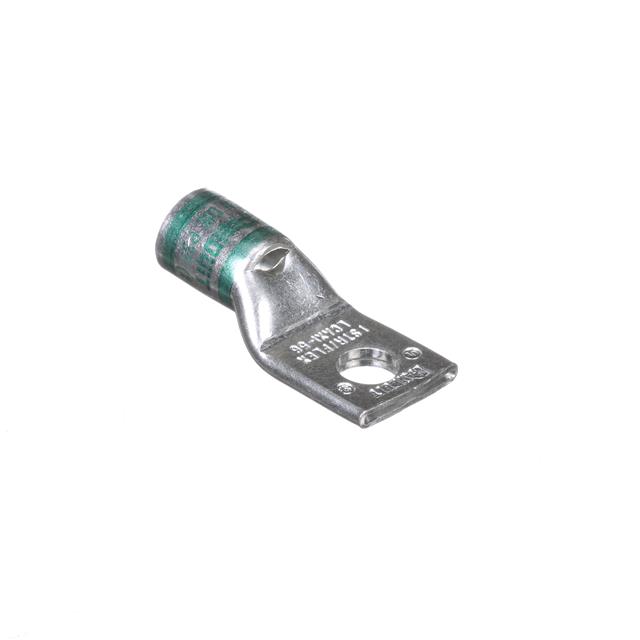

The Panduit Corp Pan-Lug™ LCDX1-14A-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component features a direct crimp termination with a barrel for secure wire accommodation of 1 AWG wire. The terminal is engineered with two stud holes, accommodating a 1/4 stud size, and boasts a tab thickness of 0.120 inches. With an overall length of 2.290 inches and an outer width of 0.760 inches, it offers a substantial form factor for reliable mounting. This terminal is suitable for inline, free-hanging applications and is supplied in bulk packaging. Its design makes it applicable in power distribution and industrial automation sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.290"" (58.17mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
