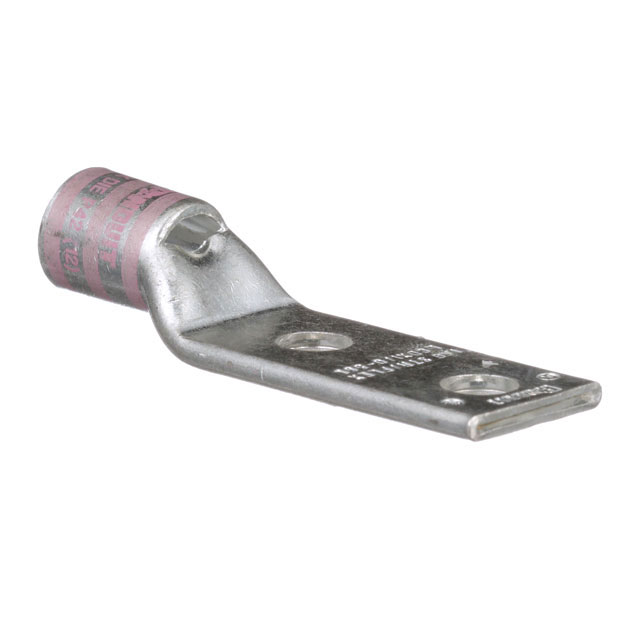

LCDX1/0-56D-X
CONN TERM RECT TONG 1/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp's Pan-Lug™ Series offers the LCDX1-0-56D-X, a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component features a 1/0 AWG wire gauge capacity and is engineered with a dual 5/16 stud configuration for secure mounting. The terminal style provides a reliable termination point for Crimp, Barrel connections, ensuring efficient current transfer and mechanical integrity. With an overall length of 2.810 inches and a width of 0.850 inches, the LCDX1-0-56D-X is suitable for in-line, free-hanging applications. Its construction, including a tab thickness of 0.130 inches, is optimized for demanding industrial environments. This connector is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing, where reliable and durable electrical terminations are critical. The Panduit Corp LCDX1-0-56D-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 2.810"" (71.37mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
