LCDX1/0-14AH-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

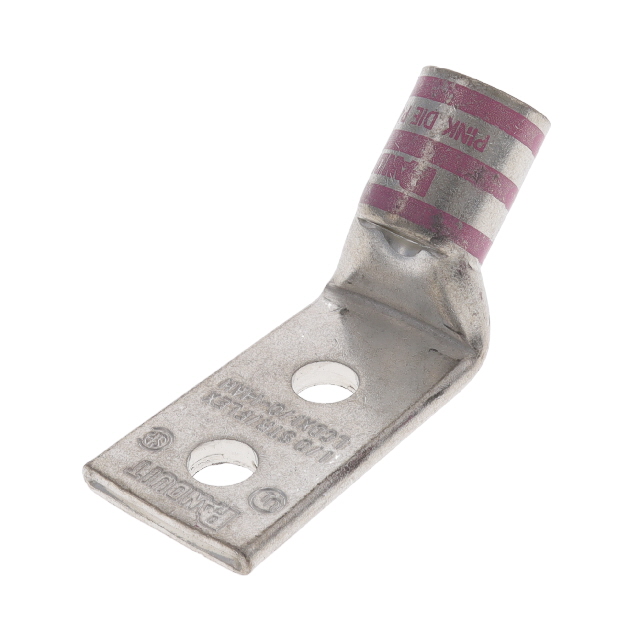

Panduit Corp Pan-Lug™ series rectangular tongue terminal, part number LCDX1-0-14AH-X, offers a robust crimp termination for 1/0 AWG wire. This non-insulated terminal features a 1/4 stud size and a 0.130" (3.30mm) tab thickness, with dual stud holes for secure mounting. The overall width is 0.850" (21.59mm). Designed for free hanging (in-line) or 45° angle mounting, this component is suitable for demanding applications in the electrical infrastructure and industrial equipment sectors. Supplied in bulk packaging, it provides reliable connectivity for power distribution and management systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
