LCDX1/0-12D-X
CONN TERM RECT TONG 1/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

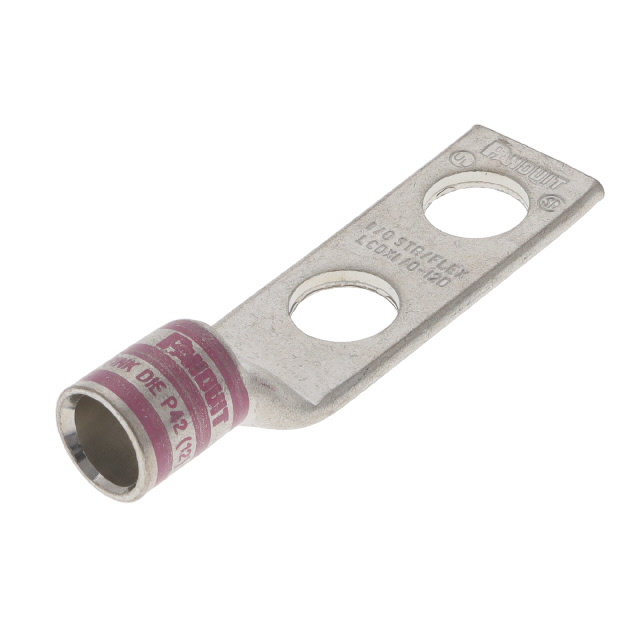

Panduit Corp Pan-Lug™ series rectangular tongue terminal connector, part number LCDX1-0-12D-X, is designed for robust electrical connections. This non-insulated, bulk-packaged terminal features a 1/0 AWG wire gauge capacity and a 1/2 inch stud size, with a rectangular tongue terminal style. Its construction includes two stud holes for secure mounting. The overall length is 3.130 inches (79.50mm), with an outer width of 0.850 inches (21.59mm) and a tab thickness of 0.130 inches (3.30mm). This component utilizes a crimp barrel termination method. It is suitable for applications in power distribution and industrial control systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 3.130"" (79.50mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
