LCDN2/0-14D-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

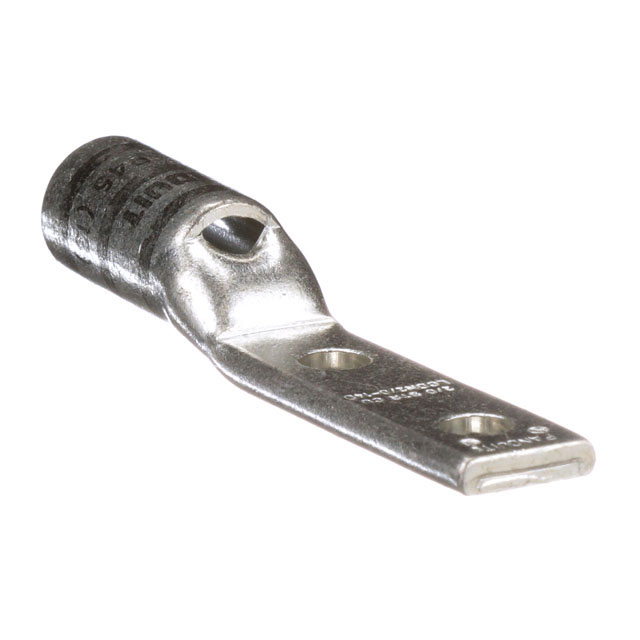

Panduit Corp Pan-Lug™ LCDN2-0-14D-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component utilizes a crimp, barrel termination method and is specified for 2/0 AWG wire. It features a 1/4 stud size and a tab thickness of 0.150 inches, with a total length of 3.110 inches. The terminal style includes two stud holes, and the overall width is 0.580 inches. This connector is offered in bulk packaging and is suitable for applications in power distribution and electrical equipment manufacturing.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.110"" (78.99mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.580"" (14.73mm) |
| Tab Thickness | 0.150"" (3.81mm) |
| Terminal Style | Two Stud Holes |
