LCDN1-14B-E
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

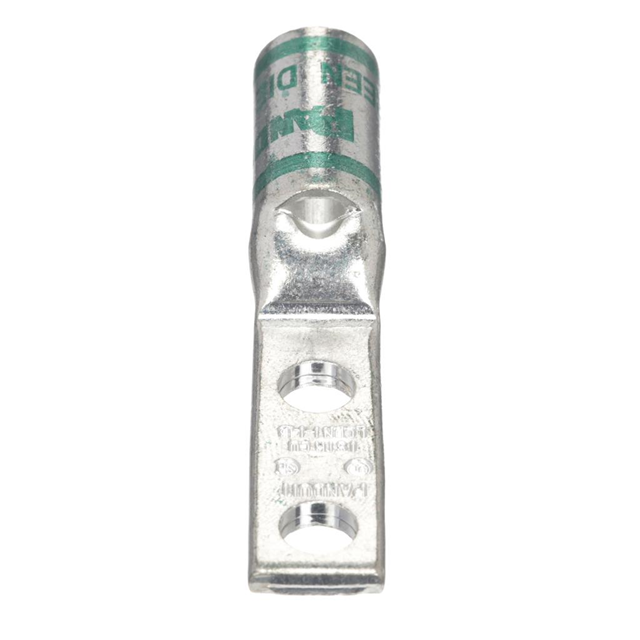

Panduit Corp Pan-Lug™ LCDN1-14B-E is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 1 AWG wire gauge and features a 1/4 stud size for secure mounting. The terminal style includes two stud holes, with a tab thickness of 0.110 inches. Its overall length is 2.540 inches, and the outer edges measure 0.470 inches in width. Termination is achieved via crimp to the barrel. This Panduit Corp component is commonly utilized in power distribution, industrial automation, and renewable energy systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.540"" (64.52mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.470"" (11.94mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
