LCDN1/0-14B-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

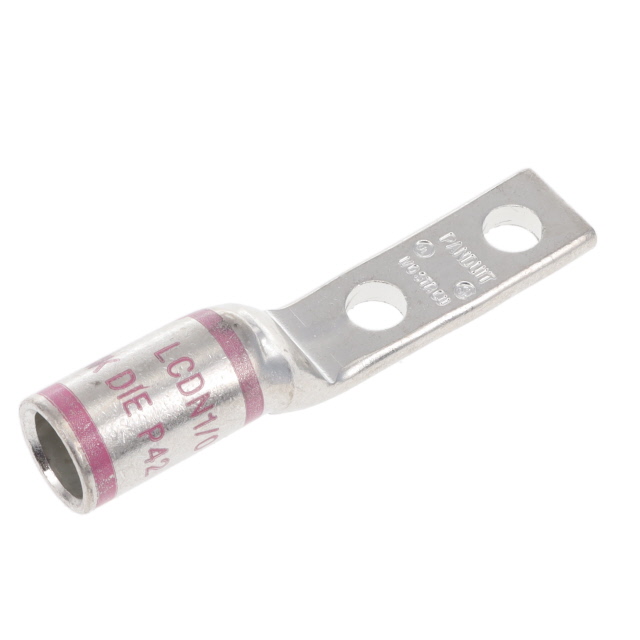

Panduit Corp Pan-Lug™ LCDN1-0-14B-X is a non-insulated, rectangular tongue terminal connector designed for 1/0 AWG wire. This component features a two-stud terminal style with a 1/4 stud size and a tab thickness of 0.130 inches. The overall length is 2.700 inches, with an outer edge width of 0.520 inches. Termination is achieved via crimp to the barrel. This component is suitable for applications in power distribution and industrial control systems. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.700"" (68.58mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.520"" (13.21mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
