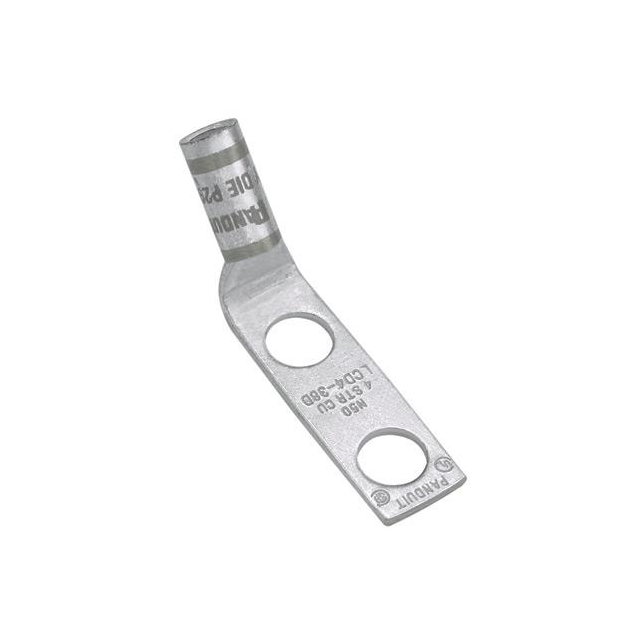

LCD8-38DH-L
CONN TERM RECT TONG 8 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCD8-38DH-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component is engineered for 8 AWG wire gauge and features a dual stud configuration with a 3/8" stud size, facilitating secure termination. The terminal style incorporates two stud holes, and the barrel termination method is Crimp. With a tab thickness of 0.050" (1.27mm) and an outer edge width of 0.600" (15.24mm), it offers substantial contact surface area. The mounting type supports free-hanging (in-line) or 45° angle configurations. This Panduit Corp component is widely utilized in industrial power distribution, electrical infrastructure, and heavy-duty equipment manufacturing. Supplied in bulk packaging, the red color may indicate wire gauge or specific application identification.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Two Stud Holes |
