LCD8-14B-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

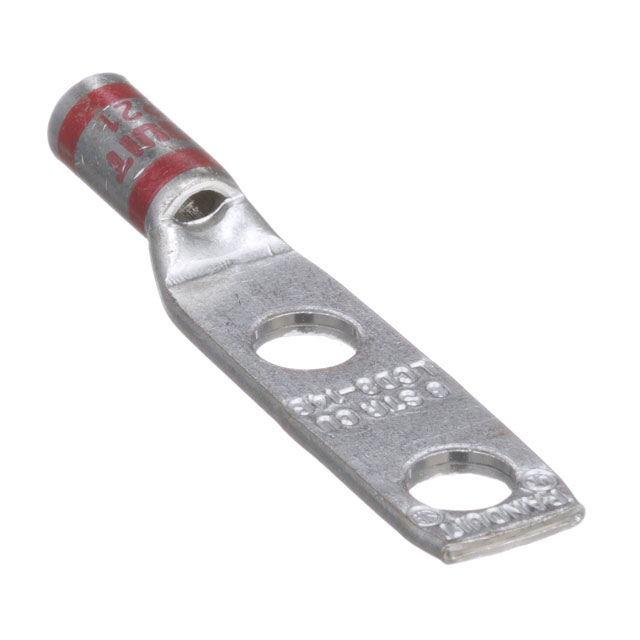

Panduit Corp Pan-Lug™ LCD8-14B-L is a non-insulated, rectangular tongue terminal connector designed for 8 AWG wire. This component features a crimp barrel termination and a 1/4 stud size, with two stud holes for enhanced mounting versatility. Its overall length is 2.090 inches (53.09mm) and its outer width measures 0.480 inches (12.19mm). The tab thickness is 0.070 inches (1.78mm). This Panduit Corp lug is suitable for applications in industrial power distribution and electrical infrastructure where reliable, high-current connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.090"" (53.09mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
