LCD8-10AH-L
CONN TERM RECT TONG 8 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

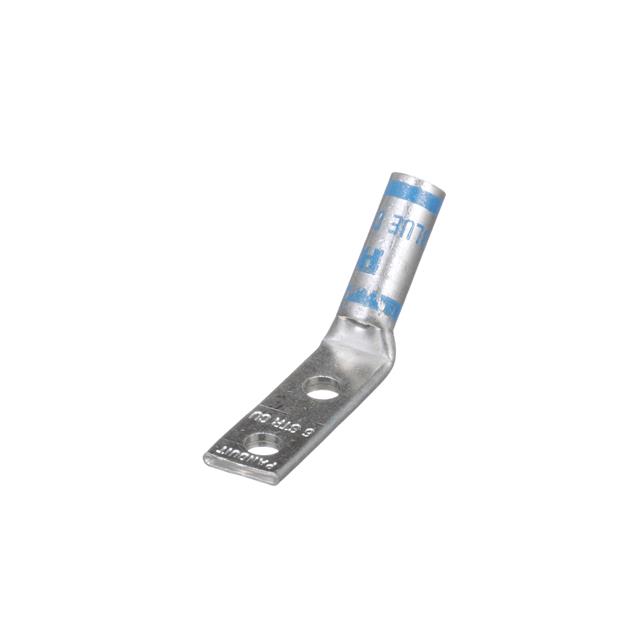

Panduit Corp Pan-Lug™ LCD8-10AH-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 8 AWG wire with a barrel termination suitable for crimping. It features two stud holes, each sized for a #10 stud, with a tab thickness of 0.080 inches (2.03mm). The overall width of the terminal tongue is 0.410 inches (10.41mm). Mounting is facilitated through free hanging (in-line) or a 45° angle configuration. Commonly utilized in power distribution and industrial control systems, this component ensures secure and reliable wire termination. The LCD8-10AH-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.410"" (10.41mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
